Synthesis of Incremental Regions of Attraction

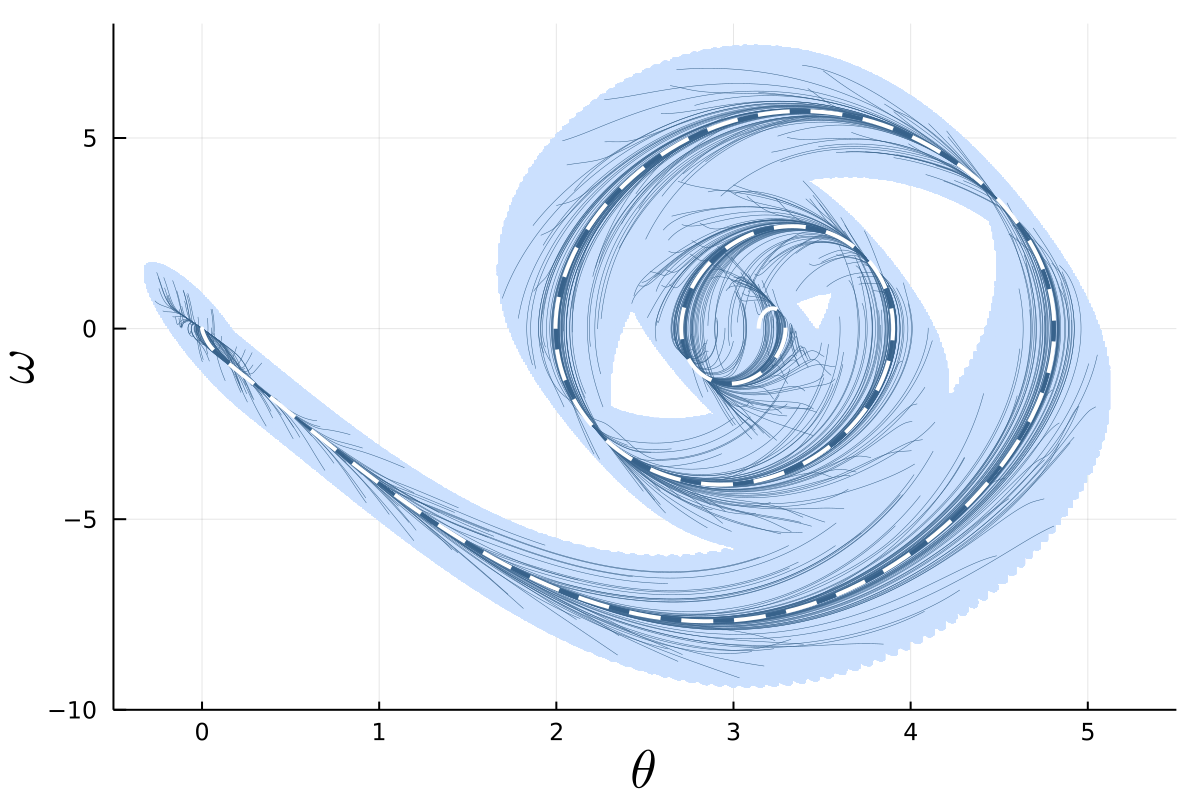

Formal methods in control design for nonlinear systems are often focused on the stabilization of an equilibrium. Modern robotics applications, however, require notions of stability to be defined when tracking reference trajectories. The idea behind an incremental region of attraction is that as long as an attractive region can be defined around any trajectory within some operating regime then all initial conditions of the system that start within the region converge to the trajectory asymptotically or exponentially. The synthesis of the region involves the verification of an incremental Lyapunov function using a branch-and-cut approach as shown below. Once a suitable incremental region of attraction is found, the attractive region around any trajectory can be efficiently computed. For example, the figure below shows the attractive region around a swing-up trajectory of a torque-limited inverted pendulum. The blue lines indicate simulations started randomly within the attractive region. Projection of the incremental region of attraction along a trajectory Some of the randomized simulations plotted above are animated in the following GIF. A collection of pendulum swing-ups This is currently unpublished work, please watch this space for more information.

Contraction Theory-Based L1\mathcal{L}_1-Adaptive Control

Contraction theory is a tool to analyze incremental stability properties for nonlinear systems and constructively design tracking controllers that stabilize the system around any trajectory. In (Zhao et al. (2021)), we provide synthesis procedures to compute robust control contraction metrics that minimize the L\mathcal{L}_\infty-gain from the disturbances to the tracking error. Even better performance can be acheived by augmenting the contraction theory-based setup with the L1\mathcal{L}_1-adaptive control architeture to compensate for the disturbances within the control channel (Lakshmanan et al. (2020)). We provide certificates in the form of tubes whose width is adjustable based on the adaptive controller parameters. Furthermore, they can be incorporated into motion planners to provide paths that are safe with respect to the disturbances, as shown below. The figure illustrates the path of 10 unicycle systems with randomized initializations that remain within the tube and avoid collisions with the gray obstacles. Tubes for safe feedback motion planning While the tubes are tunable based on tracking requirements, their adjustment relies on a trade-off with the inherent robustness of the system to model inaccuracies. In (Lakshmanan et al. (2021)), we show that the performance of the contraction theory-based L1\mathcal{L}_1-adaptive control architecture can be improved by learning any unmodeled dynamics in the system without sacrificing robustness. The GIF below illustrates the improvement in the peformance a vehicle traversing a race track in the form of tighter tubes. Performance improvement by learning uncertainties In the video below, we show the performance of an L1\mathcal{L}_1-adaptive control augmentation to the tracking control of a quadrotor by injecting disturbances in several scenarios (Wu et al. (2021)).

[1] Equal contribution

Fast Collision Detection for Trajectories

Collision checking is a computational bottleneck in motion planning problems. While there exist several fast methods for exact collision checking between convex objects, collision checking for trajectories are generally more ad-hoc — they are typically checked pointwise up to some resolution. In (Lakshmanan et al. (2019)), we provide fast methods to check for collisions for absolutely continuous curves. In the video below, we describe the prodcedure at a high-level, and show an example of how such methods may be employed in sampling-based planning. The collision detection is extensible to situations when only a probabilistic model of the motion of an obstacle is available as a high-probability result (Patterson et al. (2020)). The following figure shows two paths (green and blue), one of which has a higher probability collision than another with an obstacle. The motion of the obstacle is predicted using a gaussian process model based on past data and probabilistic intention. Collision avoidance of based on obstacle prediction
